C17000 beryllium copper hexagonal bar for hot runner mold with high conductivity

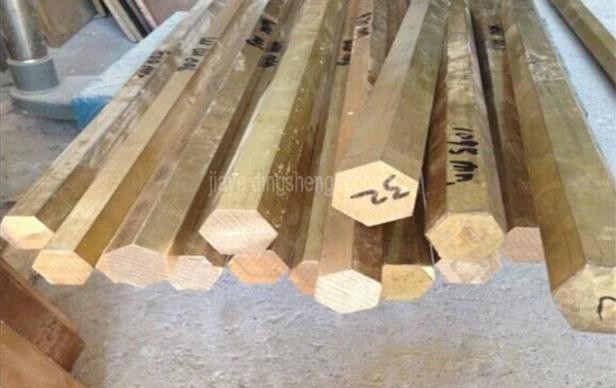

C17000 Beryllium copper hexagonal bars are a common type of C17000 beryllium copper material. Their cross-section is a regular hexagon. Due to their excellent mechanical properties and corrosion resistance, they are widely used in industrial manufacturing, architectural decoration, and daily tools. These C17000 beryllium copper hexagonal bars are usually supplied in the form of long strips, and their surfaces can undergo various treatments, such as polishing, matte finish, or satin finish, to meet diverse usage requirements.

Length (mm): 3 - 2500

Processing method: Mechanical processing

Surface: Smooth, no pitting

Product specification: 1.0 - 200mm in diameter

Sizes table for C17000 beryllium copper hexagonal bars

The following are the parameters of several commonly used C17000 beryllium copper hexagonal bars

Chemical Composition for C17000 beryllium copper hexagonal bars

• Be: 1.80-2.00%
  Co+Ni: 0.20% Min.
  Co+Ni+Fe: 0.60% Max.
  Cu: Balance
  Note: Copper plus additions equal 99.5% minimum.

Physical Properties for C17000 beryllium copper hexagonal bars

• Density (g/cm3): 8.36
  Density before age hardening (g/cm3): 8.25
  Elastic Modulus (kg/mm2 (103)): 13.40
  Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
  Thermal Conductivity (cal/(cm-s-°C)): 0.25
  Melting Range (°C): 870-980

Production process for C17000 beryllium copper hexagonal bar

The production of beryllium copper C17000 hexagonal bar is a highly precise technology. First， in a high-purity furnace， the copper and other elements such as boron and cobalt are melted together to form a metal alloy in beryllium copper C17000 hexagonal bar， ensuring uniform composition. Then，beryllium copper C17000 is shaped into billets through continuous casting or forging processes， taking on the initial form of the product. The key step is heat treatment： the material of beryllium copper C17000 is first subjected to annealing treatment (heated to approximately 800°C and slowly cooled) to soften the structure for easier processing； then it undergoes age hardening (held at 300-350°C for several hours) to stimulate the boron precipitates， significantly enhancing the strength. The entire process requires strict control of temperature and time to avoid oxidation or impurity intrusion. Modern techniques also incorporate vacuum melting and precise rolling to ensure that the micro structure of the beryllium copper C17000 material is dense and the performance is consistent. This production process not only gives beryllium copper C17000 hexagonal bar extremely high toughness but also makes it a recyclable and environmentally friendly option.

The unique design of the C17000 beryllium copper hexagonal bar

The design of the C17000 beryllium copper hexagonal bar is based on the pursuit of maximizing the utilization efficiency of the material. Compared to the circular bar, the C17000 beryllium copper hexagonal bar provides more edges on its cross-section. These edges can effectively disperse stress when subjected to pressure, thereby enhancing the overall strength of the C17000 beryllium copper. At the same time, the hexagonal shape also makes the material more compact when stacked and stored, reducing waste of space.
