Introduction to chromic zirconium copper

Chromic zirconium copper, with the chemical formula CuCrZr, is a copper-based alloy that contains copper, chromium, and zirconium elements. Besides copper as the main component, it also contains a certain amount of chromium (Cr) and zirconium (Zr). The addition of chromium can enhance the hardness and strength of the alloy, while zirconium can improve the corrosion resistance of the alloy. This alloy combines high strength, high conductivity, and good wear resistance, making it widely used in industrial fields.

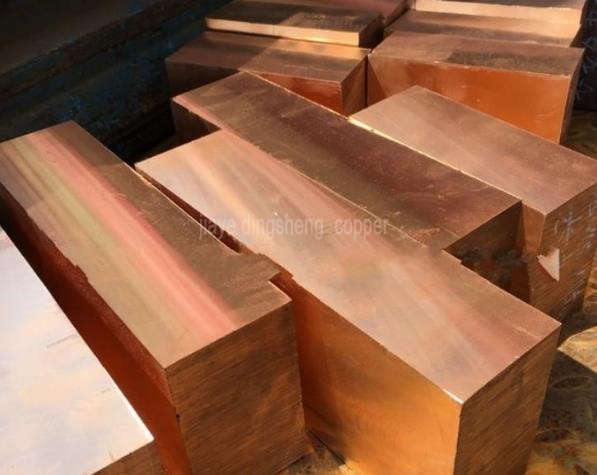

The density of chromic zirconium copper is 8.9 g/cm³, and its hardness ranges from 110 to 145 HV, showing excellent physical properties. After aging treatment, its hardness, strength, conductivity, and thermal conductivity can be significantly improved, making it highly suitable for applications requiring high strength and high conductivity.

Application of chromic zirconium copper in electrode manufacturing

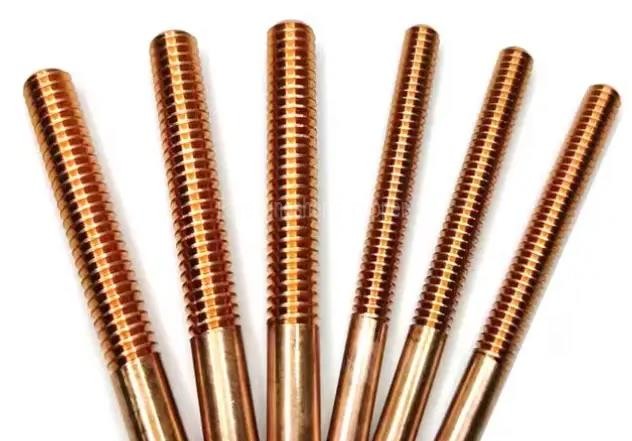

Due to its excellent conductivity, high-temperature mechanical properties, wear resistance, and high hardness, chromic zirconium copper becomes an ideal material for manufacturing electrodes. In resistance welding processes, the selection of electrode material is crucial, and chromic zirconium copper precisely meets these requirements.

Firstly, the superior conductivity of chromic zirconium copper ensures that the impedance of the circuit is minimized during the welding process, which helps achieve high-quality welding results. In high-temperature environments, chromic zirconium copper still maintains excellent mechanical properties, allowing the electrode to maintain stable performance during high-temperature welding.

Secondly, the wear resistance of chromic zirconium copper reduces the wear of the electrode during use, prolonging the electrode's service life and reducing production costs. At the same time, its high hardness and strength ensure that the electrode maintains its shape when subjected to pressure, reducing deformation and ensuring the quality of the welding.

In addition, chromic zirconium copper electrodes are widely used in spot welding and convex welding operations of carbon steel plates, stainless steel plates, and coated plates, etc. Their excellent performance and relatively reasonable price make them commonly used consumables in industrial production, especially in large-scale production scenarios. Chromic zirconium copper electrodes demonstrate extremely high cost-effectiveness.

In summary, chromic zirconium copper is a multifunctional copper-based alloy with outstanding physical and chemical properties. These properties make it widely used in various industrial fields such as electrode manufacturing. Whether in terms of conductivity, wear resistance, corrosion resistance, or high-temperature stability, chromic zirconium copper demonstrates significant advantages and shows high practical value in manufacturing high-quality electrodes.
