Introduction

In modern plastic injection molding, the hot runner system is core to production efficiency and part quality. The insert material directly determines system stability, service life and long-term operating costs. Beryllium copper (BeCu) stands out as a premium alloy for hot runner inserts, widely used in automotive, electronics, medical and consumer goods manufacturing.

This concise guide focuses on beryllium copper hot runner inserts, covering key material properties, common grades, cost factors (USD pricing) and practical selection tips. It’s tailored for overseas mold engineers, procurement teams and injection molding factory decision-makers, helping you quickly match materials to budgets and production needs.


1. Core Material Advantages of Beryllium Copper Hot Runner Inserts

1.1 Excellent Thermal Conductivity

Thermal conductivity is the most critical performance for hot runner inserts. Beryllium copper features a thermal conductivity of 100-200 W/(m·K), far higher than standard P20 and H13 mold steels. It ensures uniform heat distribution, eliminates hot spots, speeds up plastic melting and cooling, and shortens injection molding cycles by 20%-40%.

This efficiency boost directly increases daily output and reduces per-unit production costs, making it ideal for high-volume and thin-walled plastic part manufacturing.

1.2 Stable High-Temperature Mechanical Properties

After professional heat treatment, standard beryllium copper grades (C17200, C17500) reach 35-45 HRC hardness and 800-1200 MPa tensile strength. It maintains high toughness and wear resistance under long-term high-temperature working conditions, with low thermal expansion to avoid deformation or dimensional deviation.

Compared with ordinary steel inserts, beryllium copper inserts resist wear and fatigue, greatly extending the service life of hot runner components.

1.3 Strong Corrosion Resistance

Beryllium copper performs well against corrosion from flame retardants, color masterbatches and other additives in molten plastics. It avoids chemical reactions that damage inserts or contaminate finished parts, making it suitable for processing engineering plastics and modified high-performance materials.

2. Common Beryllium Copper Grades & Application Scenarios

2.1 C17200 Beryllium Copper

The most cost-effective standard grade, with balanced thermal conductivity and mechanical strength. It suits general injection molding applications (daily plastic parts, conventional automotive interior parts, small industrial components).

It’s the top choice for small-to-medium batch production and budget-friendly projects, supporting conventional CNC machining with short delivery cycles.

2.2 C17500 Beryllium Copper

An upgraded high-conductivity grade with better high-temperature stability than C17200. Designed for high-speed, high-precision injection molding of thin-walled parts, medical devices and electronic components.

It improves part surface finish and dimensional accuracy, reduces maintenance frequency, and fits long-term continuous mass production lines.

2.3 C17510 Beryllium Copper

A high-performance alloy with enhanced wear and corrosion resistance. Used for processing reinforced nylon, high-flame-retardant plastics and high-standard automotive/aerospace parts.

It has a higher price point, suitable for custom projects with strict quality and durability requirements.

3. Key Cost Factors (USD Pricing)

3.1 Raw Material Cost

Material grade is the primary cost driver, with clear price differences:

- C17200 Beryllium Copper: $11.65–$17.55/kg
- C17500 Beryllium Copper: $21.87–$36.44/kg
- C17510 Beryllium Copper: $29.15–$43.73/kg

3.2 Machining Complexity

- Simple structure inserts (flat, cylindrical standard parts): Processing fee $7.29–$21.87/piece
- Complex custom inserts (internal flow channels, precision mating surfaces): Processing fee $29.15–$72.89/piece
High-precision machining (±0.01mm tolerance) adds 10%-30% to processing costs.

3.3 Order Volume & Lead Time

- Small batches (<100 pieces): Unit cost increases by 30%-50% due to tooling setup
- Bulk orders (>1000 pieces): Unit cost reduces by 20%-40%
- Urgent orders (7-day delivery): Adds 15%-25% to total cost for priority production

3.4 Additional Costs

- Surface treatment (nickel/chrome plating): $1.46–$4.37/piece
- Third-party quality testing: Adds 5%-10% to total cost

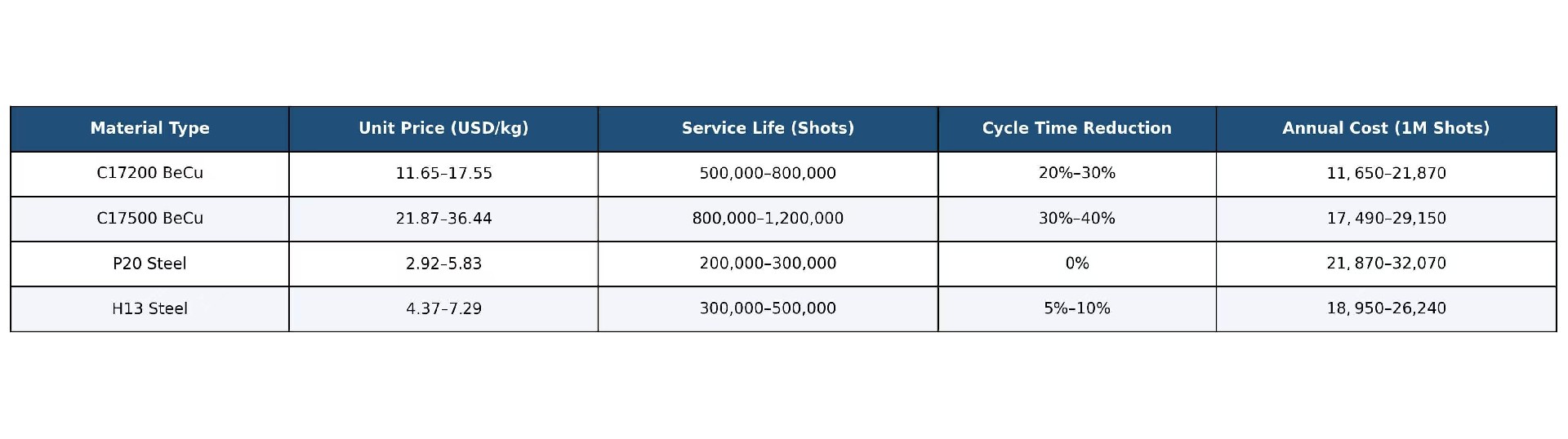

4. Cost Comparison: Beryllium Copper vs. Traditional Mold Steel

Though beryllium copper has a higher upfront cost, its longer service life and shorter production cycles lower long-term operating costs, delivering better total cost efficiency.

5. Quick Selection Guide

- General production & limited budget: Choose C17200

- High-precision & high-efficiency production: Choose C17500

- Corrosive materials & high-standard projects: Choose C17510

6. Overseas Procurement Tips

1. Confirm material grade (C17200/C17500/C17510) in the purchase contract to avoid material mismatches

2. Request official material certification and quality test reports

3. Plan orders in advance to avoid urgent delivery premiums

4. Cooperate with ISO9001 certified manufacturers for stable quality and delivery

Conclusion

Beryllium copper hot runner inserts are a high-efficiency solution for modern injection molding, balancing performance and cost for industrial production. When selecting materials, focus on total operating cost rather than just upfront price.

For custom size quotes, product catalogs or technical support for beryllium copper hot runner inserts, feel free to contact our team — we provide professional custom machining and global delivery services for overseas buyers.
