Aluminum bronze, a premier copper-based alloy family, is engineered for extreme industrial environments requiring exceptional mechanical strength, wear resistance, and anti-corrosion properties. From heavy-duty marine hardware to chemical processing equipment, the performance of the final component relies heavily on the precision of its smelting process.

In this technical guide, we break down the exact metallurgy, melting sequences, and professional troubleshooting techniques for high-quality aluminum bronze production (including popular grades like UNS C95200, C95400, and C95800).

1. Exact Material Composition & Grade Specifications

The foundational characteristics of aluminum bronze are governed by its strict chemical composition. Unlike standard brass or tin bronzes, aluminum serves as the primary alloying element, typically ranging from 5% to 15%.

Copper (Cu) Matrix (85%-95%): Forms the base metal, providing excellent baseline ductility and thermal conductivity.

Aluminum (Al) Addition (5%-15%): Drastically spikes tensile strength, hardness, and creates a self-healing aluminum oxide protective surface layer against corrosion.

Iron (Fe) & Nickel (Ni) Micro-Alloying:

Iron (~1%-5%): Acts as a grain refiner, boosting wear resistance and preventing hot shortness.

Nickel (~1%-5%): Enhances cavitation resistance, making the alloy essential for seawater-exposed impellers and marine propellers.

2. Step-by-Step Aluminum Bronze Smelting Process

To prevent severe metal loss, hydrogen absorption, and oxide inclusions, the melting and alloying sequence must be strictly monitored by the foundry team.

Phase 1: Pre-Melting Preparation & Moisture Elimination

Moisture is the worst enemy of molten copper alloys as it leads to hydrogen porosity.

Raw Material Inspection: Ensure all pure copper ingots, aluminum blocks, and master alloys are completely clean, oil-free, and dry.

Tool Preheating: Preheating the crucible, furnace lining, and stirring rods to at least 200°C-300°C is mandatory to eliminate residual moisture and minimize thermal shock.

 Phase 2: The Melting Sequence & Temperature Control

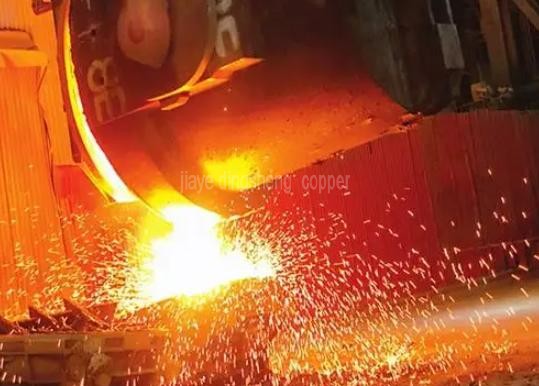

1. Liquefying the Copper Base: Charge the pure copper into the induction or gas furnace. Elevate the temperature to its melting point (~1083°C). Do not overheat the copper melt excessively to avoid rapid oxygen absorption.

2. Controlled Aluminum Addition: Once the copper bath is fully liquid, reduce the furnace power slightly and submerge the aluminum blocks into the melt. Because aluminum has a lower melting point (~660°C) and dissolves exothermically in copper, this step generates intense heat.

3. Mechanical Stirring & Homogenization: Continuously stir the molten bath from bottom to top to ensure the lightweight aluminum distributes evenly throughout the heavy copper matrix, preventing elemental segregation.

Phase 3: Refining and Fluxing

Aluminum oxidizes instantly in air, creating heavy dross. Foundries must use specialized chloride/fluoride-based refining fluxes to trap these oxides and pull them to the surface. Skim the dross thoroughly before moving to the pouring station.

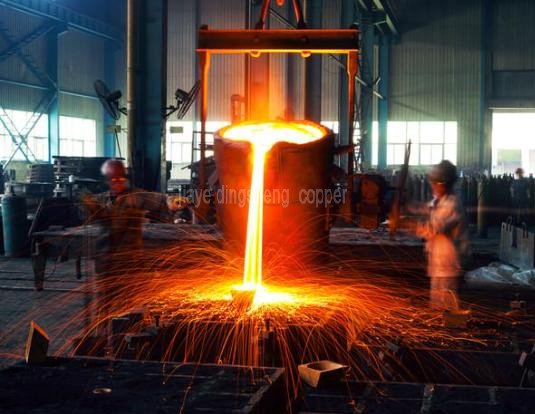

3.Pouring & Casting: Eliminating Defects

• Mold Temperature Control: Preheating sand or permanent metallic molds is crucial. Cold molds lead to immediate chilling cracks, shrinking defects, or incomplete mold filling (misruns).

• Turbulence-Free Pouring: Pour smoothly and continuously at a designated speed. High turbulence introduces air into the stream, generating dangerous internal oxide inclusions that ruin the alloy's structural integrity.

• Uniform Solidification: Allow the casting to cool down naturally. Once cooled, components can proceed to post-weld heat treatment (PWHT) or precision CNC machining.

4.Troubleshooting Common Aluminum Bronze Casting Defects

Defect 1: Alumina Inclusions

• Root Cause: Excessive turbulence or poor fluxing during stirring.

• Preventive Action: Use bottom-pouring ladles and apply high-quality cover fluxes.

Defect 2: Gas Porosity (Hydrogen)

• Root Cause: Wet raw materials or humid furnace atmosphere.

• Preventive Action: Thoroughly preheat all charges; keep melting cycles short.

Defect 3: Shrinkage Cavities

• Root Cause: Inadequate riser feeding or incorrect pouring temperature.

• Preventive Action: Optimize the gating system design and calculate correct pouring rates.

While the aluminum bronze smelting method yields an incredibly tough, cost-effective, and corrosion-resistant material for marine and heavy-duty wear applications, it is important to evaluate other high-performance copper alloys based on your specific engineering requirements.

For applications demanding ultra-high electrical conductivity combined with extreme tensile strength (such as aerospace bushings, injection molds, and resistance welding electrodes), Beryllium Copper remains the industry gold standard. On the other hand, for intricate electronic connectors and high-flexibility springs, Phosphor Bronze offers unmatched fatigue resistance.
