Phosphor bronze has excellent processing properties and is easy to be machined and shaped.

Introduction to the processing properties of phosphor bronze

Phosphor bronze is a copper alloy containing phosphorus, and it has good processing properties. Its material has moderate hardness, good ductility and high toughness, and is not prone to fracture during mechanical processing and shaping. In addition, phosphor bronze is also easy to undergo hot processing and welding.

Mechanical processing properties of phosphor bronze

The mechanical processing properties of phosphor bronze are very excellent, and it is easy to be machined by cutting, drilling, milling, etc. During these processing steps, the chips of phosphor bronze are easy to peel off and will not clog the cutting tools, so the processing efficiency is higher and the surface quality is better. At the same time, the surface finish of phosphor bronze after processing is high, and it is not prone to problems such as burrs and oxidation, so it is very suitable for making precision parts or decorative parts.

Phosphor bronze indeed has excellent turning performance, which is mainly attributed to its unique chemical composition and processing characteristics. Specifically, phosphor bronze, especially models like C54400, contains copper, tin, phosphorus, and a certain amount of lead. Among them, the addition of lead significantly reduces the friction coefficient of the material during the cutting process, which not only reduces the wear of the cutting tool but also improves the accuracy and efficiency of the processing.

From a technical perspective, the superior cutting performance of phosphor bronze is partly due to the synergistic effect of its alloy elements. Copper serves as the base material, providing good toughness and conductivity; tin's addition enhances the strength and corrosion resistance of the material; and phosphorus helps improve the cutting machinability of the material. The lubricating effect of lead is also one of the key factors contributing to the excellent turning performance of phosphor bronze.

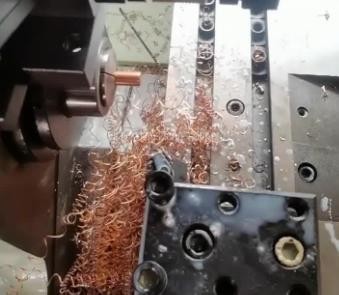

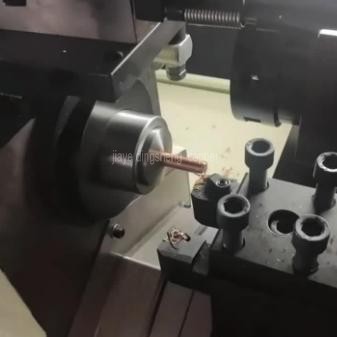

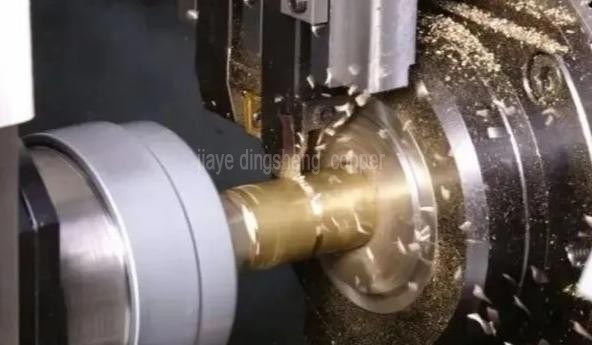

Techniques and precautions for machining phosphor bronze on a lathe

l 1. Select the appropriate cutting tool

When machining phosphor bronze, problems such as tool jamming, burrs and thermal cracks may occur. Therefore, high-quality carbide or coated with nano-coating cutting tools should be selected to ensure the quality of the machined surface.

l 2. Control the cutting parameters of the lathe

When processing phosphor bronze, it is necessary to control parameters such as cutting speed, feed rate, and cutting depth. Because too high a cutting speed can easily cause thermal cracks, excessive feed rate will lead to surface roughness, and too large a cutting depth can also cause surface burrs.

l 3. Select an appropriate coolant for processing

Phosphor bronze has a low thermal conductivity and poor heat transfer performance, so an appropriate coolant needs to be selected to ensure heat dissipation during processing. It is recommended to choose water-soluble cutting fluid, which can effectively lower the temperature and extend the life of the cutting tool.

l 4. Surface Treatment of Machined Parts

The surface of phosphor bronze is prone to accumulate copper debris, requiring regular cleaning. Additionally, after the machining process is completed, surface treatment such as deburring and polishing is necessary to ensure the accuracy and surface finish of the parts.

l 5. Avoid Repeated Machining

During the turning process of phosphor bronze, due to its high hardness, it is likely to cause damage to the previously used cutting tools, making it difficult to achieve good results in subsequent machining. Therefore, it is necessary to avoid repeated machining of the same area to prevent damage.

The forming performance of phosphor bronze

The forming performance of phosphor bronze is also very excellent. Usually, when forming with equipment such as presses and punch presses, phosphor bronze can quickly form various shaped parts, and during the forming process, it is not prone to cracks or deformation. In addition, phosphor bronze has good forgeability and can be used for various shapes of cold, hot rolling or extrusion.

Overall, the processing performance of phosphor bronze is excellent, and it is easy to be machined and formed. Therefore, it has very wide applications in mechanical processing, decoration, and craftsmanship fields, such as watches, hardware parts, sculptures, water meters, valves, and other fields.
